X/Y Plotter

/*

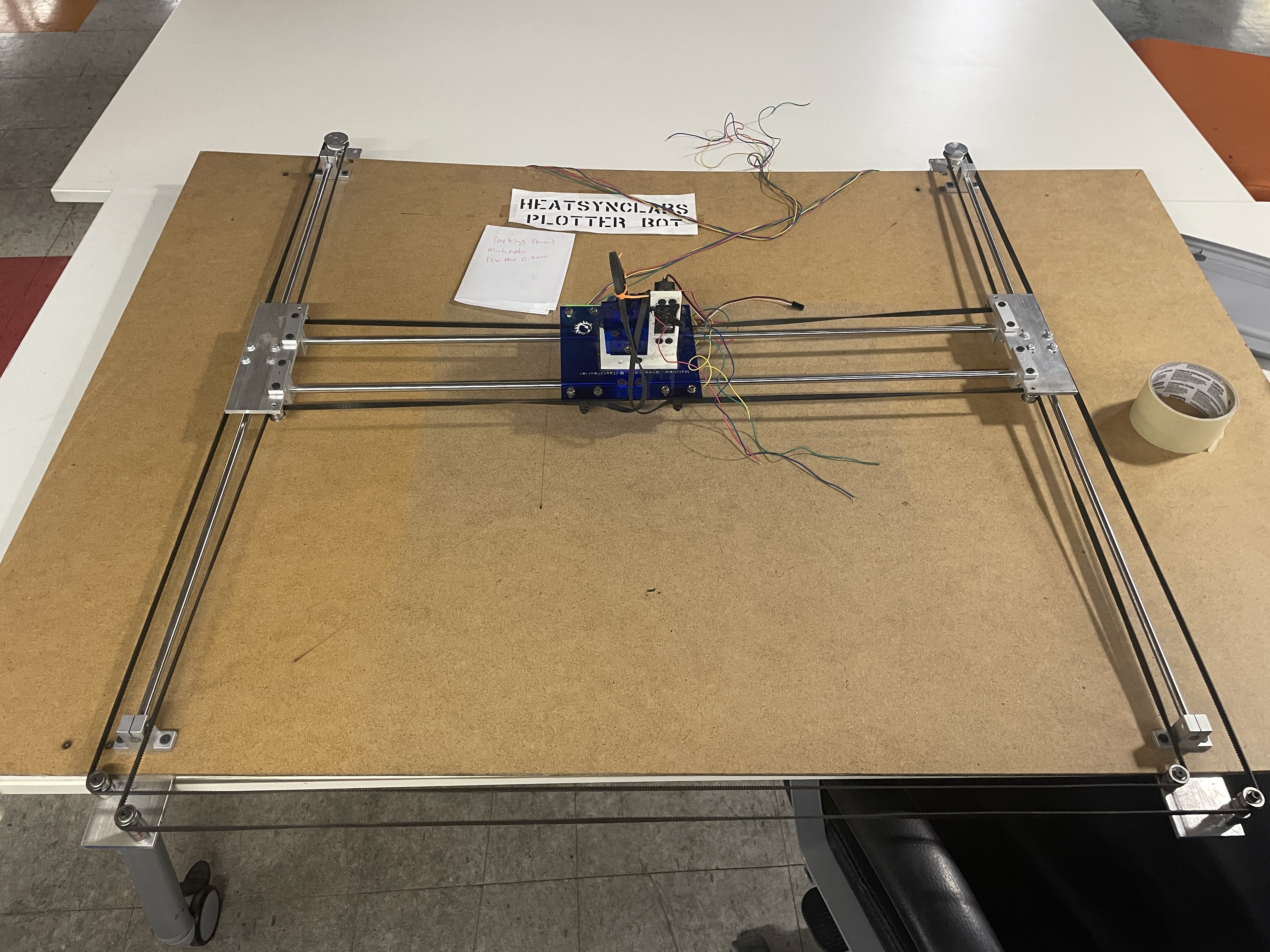

  HEATSYNC CoreXY Plotter Bot  (Buildlog.net 4-Axis Stepper Shield, p/n C16013)
  -----------------------------------------------------------------------------
  Board:   Arduino Uno R3

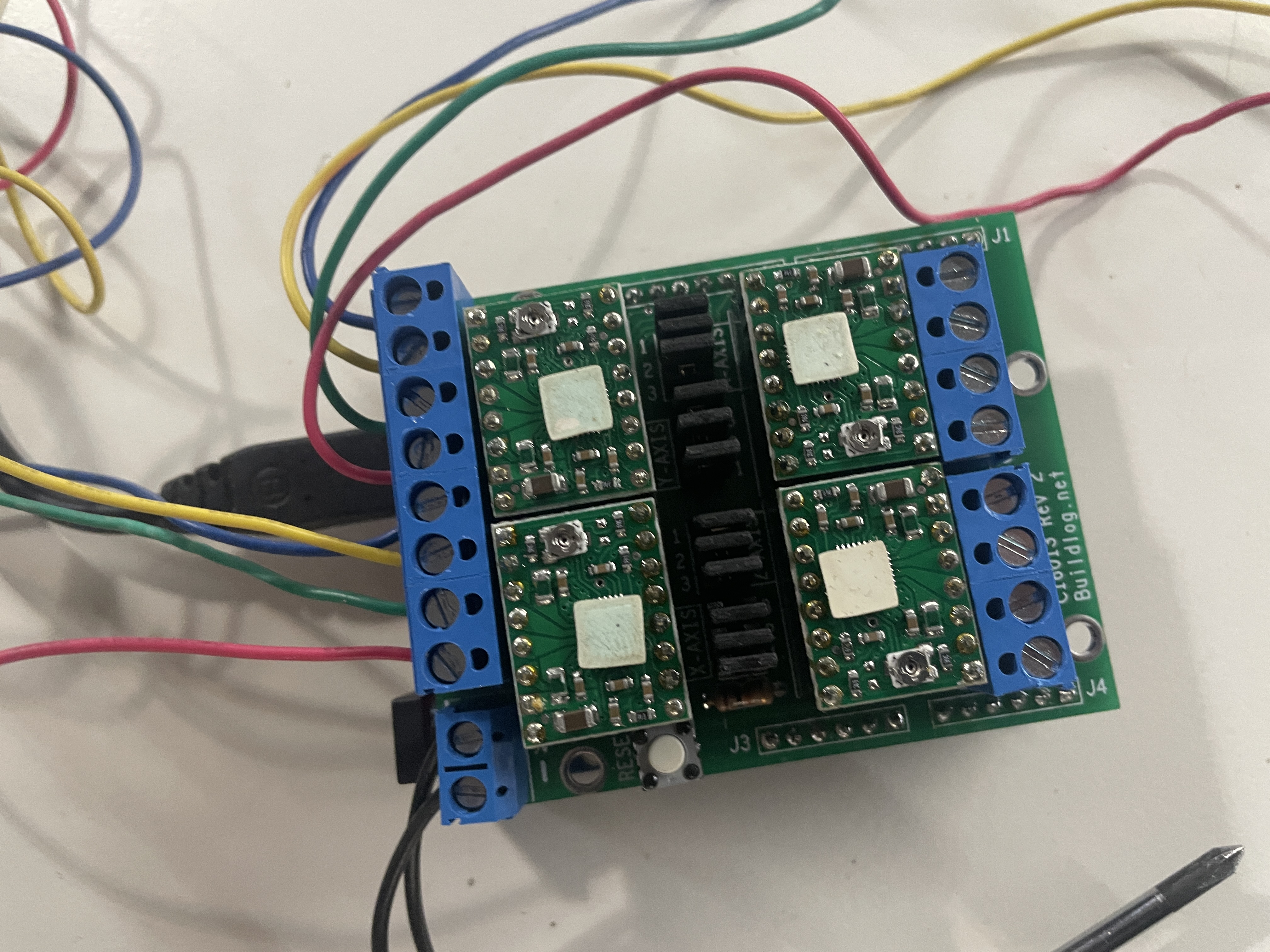

  Shield:  Buildlog.net 4-Axis Stepper Driver Shield (C16013), takes Pololu-style
           A4988 / DRV8825 / StepStick driver modules. Step/dir control.
  Drive:   2 bipolar steppers in a CoreXY / H-bot belt layout
  Pen:     hobby servo on a free signal pin (default D12)

  This is the step/dir version. It speaks the SAME serial protocol as the motor

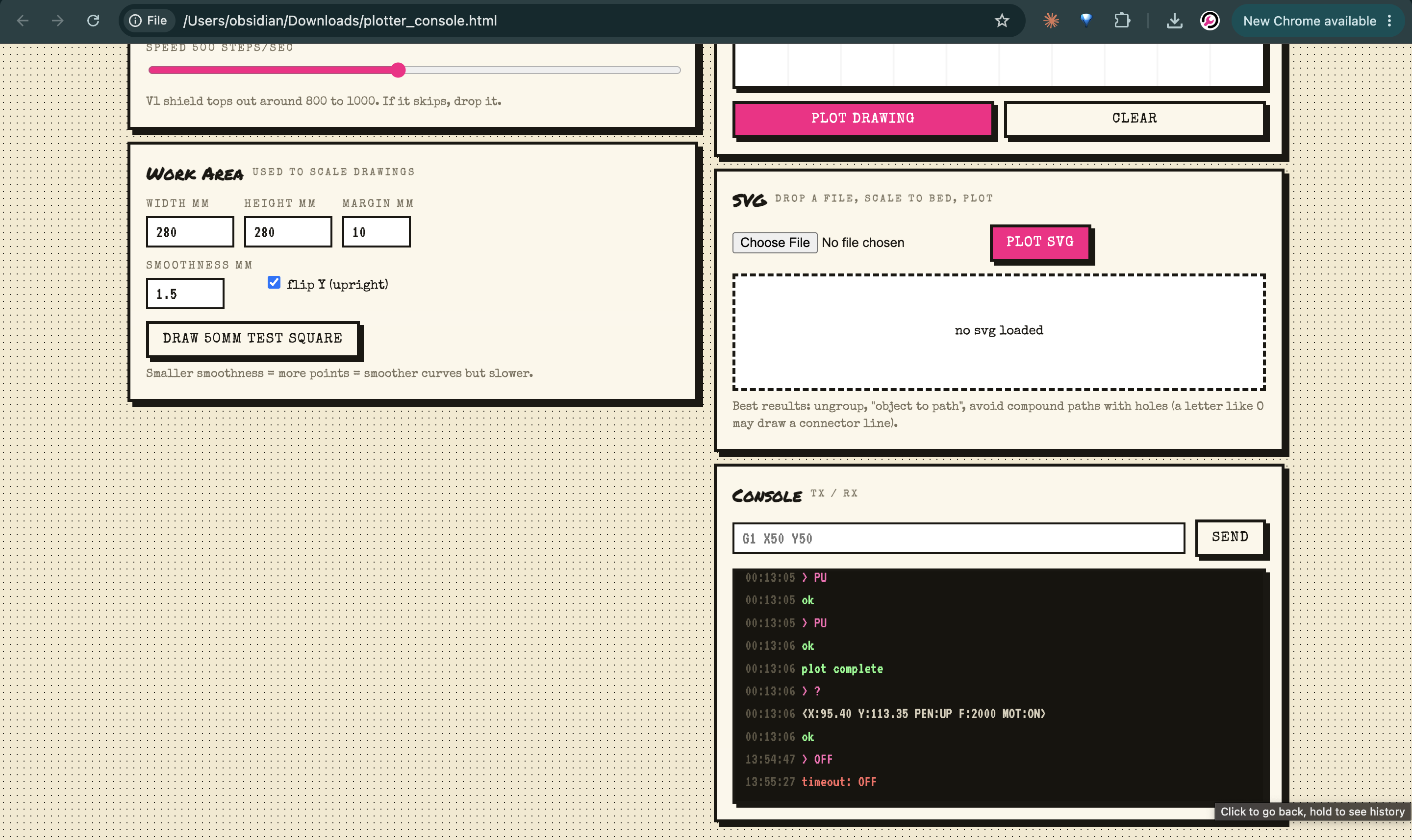

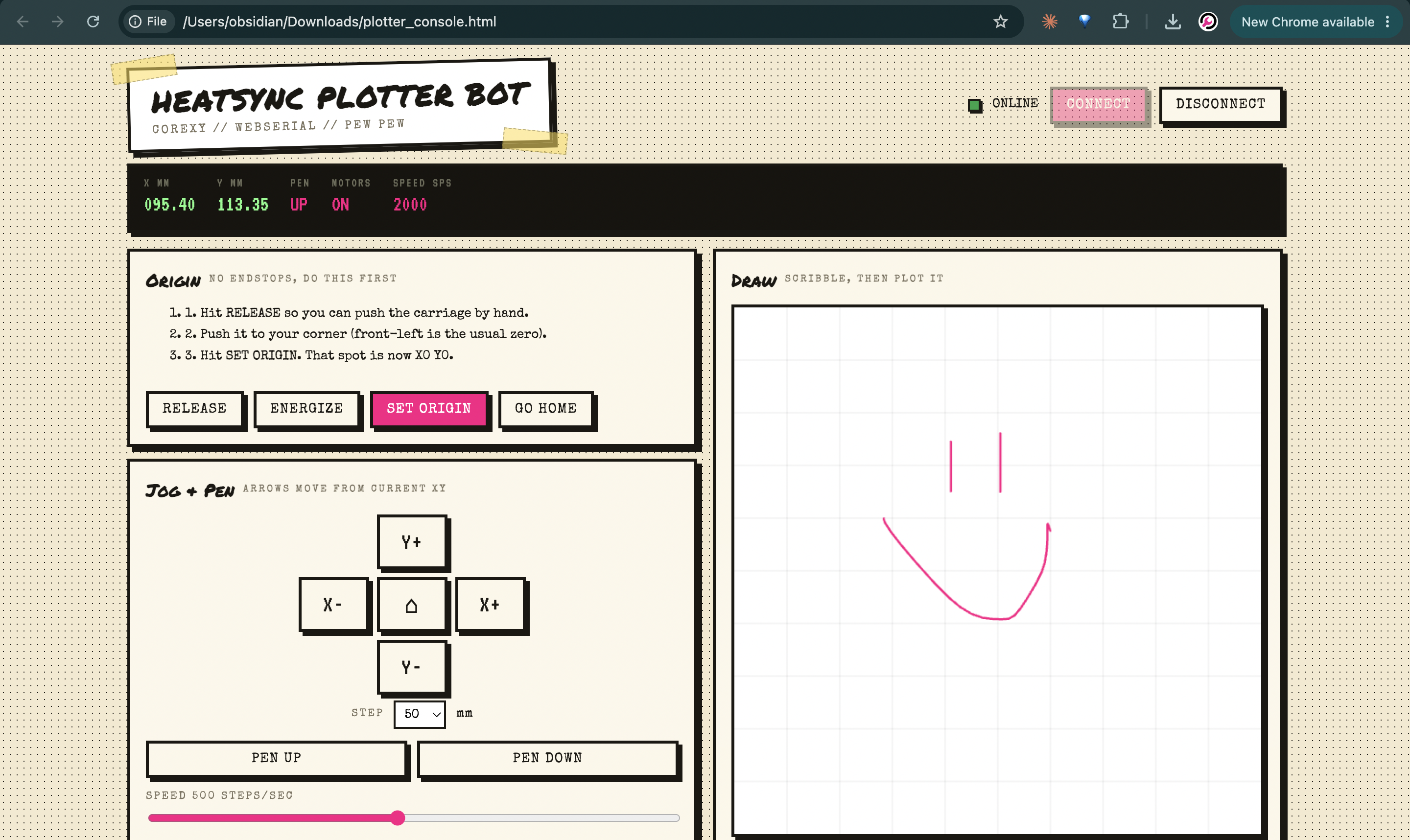

  shield version, so the WebSerial page (plotter_console.html) works unchanged.

  Pin map (from the C16013 user guide, the board's hardwired Arduino routing):
       X Step = D2    X Dir = D3
       Y Step = D4    Y Dir = D5
       Z Step = D6    Z Dir = D7      (unused on a 2-motor plotter)
       A Step = D10   A Dir = D11     (unused)
       Enable = D8    (shared by all drivers, ACTIVE LOW: LOW = energized)
  NOTE: this map is from the Rev 3 guide. Rev 2 is almost certainly identical
  because changing it would break every grbl config, but glance at your board's
  silkscreen or the Rev 2 schematic on buildlog.net to be sure. If a jog moves
  the wrong axis or nothing moves, the pin defines below are where you fix it.

  Driver setup before you power anything:
    - Orientation is critical. A backwards driver dies instantly when powered.
      Match the module to the silkscreen (the pot/EN arrow) on each socket.
    - Set the current limit with the pot (VREF). Start LOW for a light pen
      carriage, around 0.3 to 0.5 V at the pot, then raise only if it skips.
    - Set the microstep jumpers the SAME on X and Y, and match STEPS_PER_MM.
    - Never connect or disconnect a stepper with the board powered. It can kill
      the driver.

  Homing is manual (no endstops):
    1. OFF        (drivers disabled, push the carriage by hand)
    2. push to your origin corner
    3. ZERO       (that spot is now 0,0)
    4. jog / plot. +X right, +Y away from the motors.

  Serial: 115200 baud, newline-terminated. Each command replies "ok".
    G1 X.. Y..  move absolute mm (missing axis keeps current; G0 is an alias)
    PU / PD     pen up / pen down       (alias U / D)
    ZERO        set current to 0,0      (alias G92, or G92 X.. Y..)
    G28         home: pen up, go to 0,0 (alias HOME)
    F<n>        top speed in steps/sec
    OFF / ON    disable / enable drivers (alias M84 / M17)
    ?           status                  (alias M114)

  Libraries: AccelStepper (MultiStepper ships with it), Servo (bundled).
  -----------------------------------------------------------------------------
*/

#include <AccelStepper.h>
#include <MultiStepper.h>
#include <Servo.h>

// ============================ PINS ==========================================
#define X_STEP 2
#define X_DIR  3
#define Y_STEP 4
#define Y_DIR  5
#define EN_PIN 8          // shared driver enable, ACTIVE LOW (LOW = on)
#define PEN_PIN 12        // servo signal. Use a free, accessible, UNFILTERED pin.
                          // D12 (spindle pin) is usually clean. Do NOT use a
                          // limit-input pin, the RC filter there mangles servo PWM.

// ============================ CONFIG ========================================
// STEPS_PER_MM = motor_steps * microsteps / mm_per_rev
//   200-step motor, 1/8 microstep, GT2 belt on a 20T pulley (40 mm/rev):
//   200 * 8 / 40 = 40.  CALIBRATE this once you know your real numbers.
float STEPS_PER_MM = 40.0;

// CoreXY direction commissioning. Flip until +X goes right, +Y goes away.
#define SWAP_AB    0
#define INVERT_A   0
#define INVERT_B   0
#define SWAP_XY    0

// Motion. Real drivers let you go much faster than the L293D shield did.
// AccelStepper on a 16 MHz Uno tops out near 3000 to 4000 steps/sec for two
// coordinated motors. Start here and raise until it skips.
float maxSpeedSPS = 2000.0;

// Soft limits (measured from where you ZERO, since there are no endstops).
#define ENABLE_SOFT_LIMITS 1
float MIN_X = 0.0,  MAX_X = 280.0;
float MIN_Y = 0.0,  MAX_Y = 280.0;

// Pen servo
#define PEN_UP_ANGLE   50
#define PEN_DOWN_ANGLE 90
#define PEN_SETTLE_MS  220

// ============================ HARDWARE ======================================
AccelStepper stepperA(AccelStepper::DRIVER, X_STEP, X_DIR);   // CoreXY motor A -> X socket
AccelStepper stepperB(AccelStepper::DRIVER, Y_STEP, Y_DIR);   // CoreXY motor B -> Y socket
MultiStepper gantry;

Servo pen;
bool penIsDown  = false;
bool motorsLive = false;

char buf[80];
uint8_t bufIdx = 0;

// ============================ KINEMATICS ====================================
// CoreXY:  A = X + Y,  B = X - Y   (steps).   X = (A+B)/2,  Y = (A-B)/2
void xyToMotors(float x, float y, long &a, long &b) {
  if (SWAP_XY) { float t = x; x = y; y = t; }
  long sx = lround(x * STEPS_PER_MM);
  long sy = lround(y * STEPS_PER_MM);
  long ta = sx + sy;
  long tb = sx - sy;
  if (INVERT_A) ta = -ta;
  if (INVERT_B) tb = -tb;
  if (SWAP_AB)  { long t = ta; ta = tb; tb = t; }
  a = ta; b = tb;
}
void motorsToXY(long a, long b, float &x, float &y) {
  if (SWAP_AB)  { long t = a; a = b; b = t; }
  if (INVERT_A) a = -a;
  if (INVERT_B) b = -b;
  long sx = (a + b) / 2;
  long sy = (a - b) / 2;
  float fx = (float)sx / STEPS_PER_MM;
  float fy = (float)sy / STEPS_PER_MM;
  if (SWAP_XY) { float t = fx; fx = fy; fy = t; }
  x = fx; y = fy;
}
void currentXY(float &x, float &y) {
  motorsToXY(stepperA.currentPosition(), stepperB.currentPosition(), x, y);
}

// ============================ ACTIONS =======================================
void energizeMotors() { digitalWrite(EN_PIN, LOW);  motorsLive = true; }
void releaseMotors()  { digitalWrite(EN_PIN, HIGH); motorsLive = false; }

void applySpeed() {
  stepperA.setMaxSpeed(maxSpeedSPS);
  stepperB.setMaxSpeed(maxSpeedSPS);
}

void moveToXY(float x, float y) {
  if (ENABLE_SOFT_LIMITS) {
    x = constrain(x, MIN_X, MAX_X);
    y = constrain(y, MIN_Y, MAX_Y);
  }
  energizeMotors();                            // drivers must be enabled to move
  long targets[2];
  xyToMotors(x, y, targets[0], targets[1]);    // [0]=A, [1]=B (addStepper order)
  gantry.moveTo(targets);
  gantry.runSpeedToPosition();                 // blocks until both reach target
}

void setPen(bool down) {
  pen.write(down ? PEN_DOWN_ANGLE : PEN_UP_ANGLE);
  penIsDown = down;
  delay(PEN_SETTLE_MS);
}

void printStatus() {
  float x, y;
  currentXY(x, y);
  Serial.print(F("<X:"));   Serial.print(x, 2);
  Serial.print(F(" Y:"));   Serial.print(y, 2);
  Serial.print(F(" PEN:")); Serial.print(penIsDown ? F("DOWN") : F("UP"));
  Serial.print(F(" F:"));   Serial.print(maxSpeedSPS, 0);
  Serial.print(F(" MOT:")); Serial.print(motorsLive ? F("ON") : F("OFF"));
  Serial.println(F(">"));
}

// ============================ PARSER ========================================
float getVal(const char* s, char key, float fallback) {
  const char* p = strchr(s, key);
  if (!p) return fallback;
  return atof(p + 1);
}
void handleMove(const char* s) {
  float cx, cy;
  currentXY(cx, cy);
  moveToXY(getVal(s, 'X', cx), getVal(s, 'Y', cy));
}
void exec(char* s) {
  for (char* p = s; *p; ++p) *p = toupper(*p);
  if (s[0] == ';' || s[0] == 0) { Serial.println(F("ok")); return; }

  if (!strncmp(s, "G0", 2) || !strncmp(s, "G1", 2)) { handleMove(s); Serial.println(F("ok")); return; }
  if (!strncmp(s, "G28", 3) || !strcmp(s, "HOME"))  { setPen(false); moveToXY(0, 0); Serial.println(F("ok")); return; }
  if (!strncmp(s, "G92", 3)) {
    float x = getVal(s, 'X', 0), y = getVal(s, 'Y', 0);
    long a, b; xyToMotors(x, y, a, b);
    stepperA.setCurrentPosition(a); stepperB.setCurrentPosition(b);
    Serial.println(F("ok")); return;
  }
  if (!strcmp(s, "ZERO")) { stepperA.setCurrentPosition(0); stepperB.setCurrentPosition(0); Serial.println(F("ok")); return; }
  if (!strcmp(s, "PU") || !strcmp(s, "U")) { setPen(false); Serial.println(F("ok")); return; }
  if (!strcmp(s, "PD") || !strcmp(s, "D")) { setPen(true);  Serial.println(F("ok")); return; }
  if (!strcmp(s, "M84") || !strcmp(s, "OFF")) { releaseMotors();  Serial.println(F("ok")); return; }
  if (!strcmp(s, "M17") || !strcmp(s, "ON"))  { energizeMotors(); Serial.println(F("ok")); return; }
  if (s[0] == 'F') {
    maxSpeedSPS = atof(s + 1);
    if (maxSpeedSPS < 20)   maxSpeedSPS = 20;
    if (maxSpeedSPS > 4000) maxSpeedSPS = 4000;
    applySpeed();
    Serial.println(F("ok")); return;
  }
  if (s[0] == '?' || !strncmp(s, "M114", 4)) { printStatus(); Serial.println(F("ok")); return; }

  Serial.print(F("err: unknown [")); Serial.print(s); Serial.println(F("]"));
}

// ============================ SETUP / LOOP ==================================
void setup() {
  Serial.begin(115200);

  pinMode(EN_PIN, OUTPUT);
  releaseMotors();            // start disabled so you can push to origin

  pen.attach(PEN_PIN);
  setPen(false);

  applySpeed();
  gantry.addStepper(stepperA);   // index 0 = A
  gantry.addStepper(stepperB);   // index 1 = B

  Serial.println(F("; HEATSYNC CoreXY Plotter (C16013 shield) ready"));
  Serial.println(F("; homing: OFF -> push to corner -> ZERO -> plot"));
  Serial.println(F("; cmds: G1 X.. Y.. | PU | PD | ZERO | G28 | F.. | OFF | ON | ?"));
}

void loop() {
  while (Serial.available()) {
    char c = Serial.read();
    if (c == '\n' || c == '\r') {
      if (bufIdx > 0) { buf[bufIdx] = 0; exec(buf); bufIdx = 0; }
    } else if (bufIdx < sizeof(buf) - 1) {
      buf[bufIdx++] = c;
    }
  }
}

/*
  -----------------------------------------------------------------------------
  CALIBRATE STEPS_PER_MM: ZERO, send G1 X100, measure real travel D,
    new value = STEPS_PER_MM * (100 / D). Re-upload.

  IF MOTION IS WRONG:
    - jog X+ and the WRONG motor moves, or the axes feel rotated
        -> set SWAP_XY 1, or swap which motor is in the X vs Y socket.
    - +X goes left, or +Y goes the wrong way
        -> flip INVERT_A and/or INVERT_B.
    - a motor does not move at all
        -> driver seated/oriented right? current pot not at zero? enable (D8)
           reaching the driver? coil pairs landed on adjacent terminals?
    - a motor buzzes and jitters
        -> coil pairs are split across the wrong terminals. Re-pair them.

  MICROSTEP vs SPEED: more microsteps is smoother but caps your top speed on a
    Uno. 1/8 is a good plotter balance. If you change it, change STEPS_PER_MM.
  -----------------------------------------------------------------------------
*/
